OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

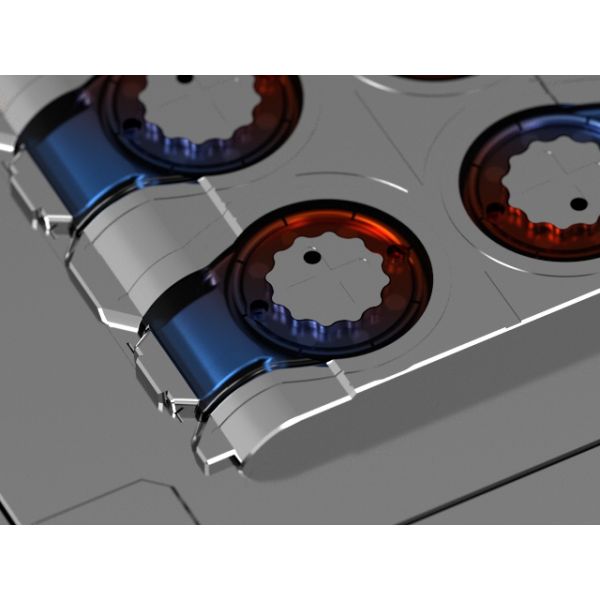

OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C

Brand Name : Chitwing

Model Number : In-Car Products

Certification : ISO 9001:2015

Place of Origin : India

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 350.000 X 452

IMM Tonnage : 100T

Mold Weight : 141kg

Mold life : 500K shots

Part material : PC

Part weight : 0.08g

Lifter : 2

Type : Three-plates mold

Standard : LKM

Contact Now

Transparent On-board Clamp Bracket (1*8)

No.24119-C

Description:

Our Multi Cavity Injection Molds are expertly crafted to allow for the simultaneous manufacturing of numerous identical parts in one molding cycle. This precise design guarantees consistent part quality and uniformity across all cavities, enhancing production efficiency and minimizing cycle times. The robust build of our molds ensures durability and dependability, resulting in cost-effectiveness and continuous high-volume production capabilities. Additionally, our molds can be tailored to suit various part shapes and material needs, offering flexibility to fulfill a variety of production demands.


Application:

Mounting clamp bracket
plastic components
Assembling injection molded pieces.


Features:

Mold base P/N FCI3035 6012090
Type Three-plates mold
IMM Tonnage 100T
Standard LKM
Lifter 2
Net weight 141kg
Mold size Length 350
Width 350
Height 452
Mold life 500K shots
Part material PC
Part weight 0.08g
Part size 350.000 X 350.000 X 452 mm
Injection/runner type Hot runner

This hot runner mold ensures that the melt enters the cavity with uniform pressure,

resulting in proper cavity filling. The molded part exhibits consistent density and stable

quality, with a good cosmetic finish. The mold fits well, producing molded parts without

any flow marks.
Surface finish A surface EDM with Charmilles VDI24#
Steel of cavity & core Harden (1*8/S136)

The Charmilles VDI24# surface EDM offers excellent roughness, resulting in molded

parts with finer, smoother, and clearer surfaces. Both the cavity and core are hardened

to achieve high hardness, anti-corrosion, and anti-wearing properties, effectively

preventing oxidation and decarburization.

Advantage:

Our company's Multi Cavity Injection Molds are designed with utmost care to optimize the manufacturing process. By enabling the simultaneous production of multiple identical parts within a single molding cycle, these molds greatly improve production efficiency and reduce lead times. The precise engineering of our molds ensures consistent part quality across all cavities, resulting in top-notch finished products. Furthermore, the sturdy construction of our Multi Cavity Injection Molds guarantees durability and reliability, leading to cost savings and the ability to sustain high-volume manufacturing. Moreover, the customizable nature of our molds allows for the accommodation of various part geometries and material specifications, providing flexibility to meet a wide range of production requirements.

OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C

OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C

OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C

Display diagram

OEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-COEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-COEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-COEM / ODM Injection Mold Transparent On-board Clamp Bracket (1*8) No.24119-C

[Mold life] 500K shots
[Part material] PC
[Part weight] 0.08g
[Part size] 350.000 X 350.000 X 452 mm
